From construction work to natural resource development, the applications for MAEDA Mini Cranes are limitless.

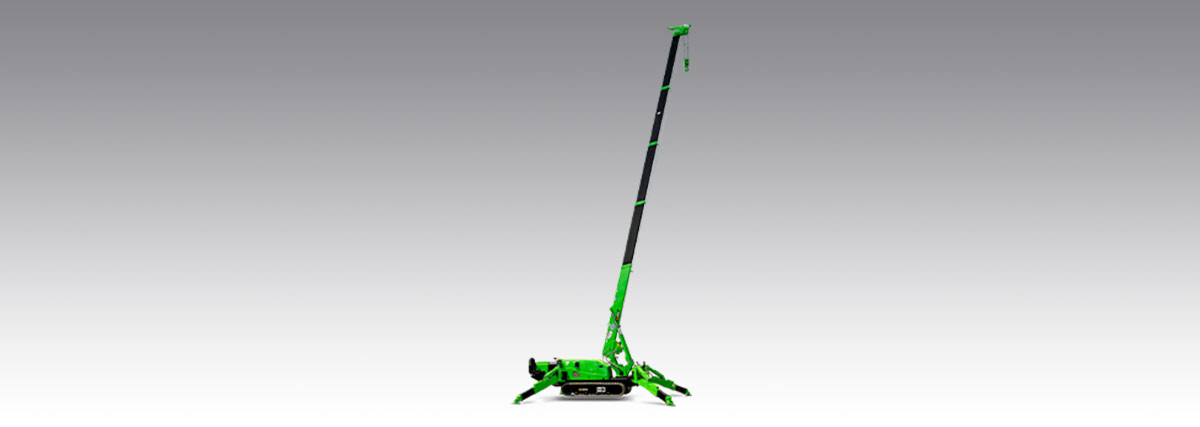

MAEDA MC305CB electric-powered Mini Crane

Crane capacity

6,560 lb x 8.0 ft
(2.98t x 2.5m)

Max. lifting height (on the ground)

41.0 ft
(12.52m)

Max. working radius

39.8 ft x 570 lb
(12.16m x 0.26t)

Max. lifting height (underground)

-53.0 ft (4 falls)
(-16.09m)

Battery life

Up to a full working day if charged during operation

Charging time

Full battery charge in 4h 30m (AC200V)

STANDARD EQUIPMENT

All our cranes include a range of standard equipment that ensure the
safety, functionality and usability of the cranes are unsurpassed.

MAEDA Mini Battery Crane Remote Control with Digital Display

Remote Control with Digital Display

MAEDA Mini Battery Crane 2 Speed Function Travel 2 Speed Function

Crane 2 Speed Function
Travel 2 Speed Function

MAEDA Mini Battery Crane 4 fall/2 fall Hook Block

4 fall / 2 fall Hook Block

MAEDA Mini Battery Crane Automatic Hook Stowage System

Automatic Hook Stowage System

MAEDA Mini Crane level

Level

MAEDA Mini Crane Diagnostic Display Panel

Diagnostic Display Panel

MAEDA Mini Battery Crane Programmable Moment Limiter

Programmable Moment Limiter

MAEDA Mini Battery Crane/OR Interlock (OR Set Lamp)

Crane / OR Interlock (OR Set Lamp)

MAEDA Mini Crane Working Status Lamp

Working Status Lamp

MAEDA Mini Crane Data Logger

Data Logger

MAEDA Mini Crane Tilt Alarm diagram

Tilt Alarm

OPTIONS

A range of optional equipment that enables our cranes to adapt
to all kinds of work and environmental factors.

MAEDA Mini Crane Electric Motor Power diagram (Inverter System) diagram

Electric Motor Power (Inverter System)

MAEDA Mini Crane Single Fall Hook

Single Fall Hook

MAEDA Mini Crane Searcher Hook diagram

Searcher Hook

MAEDA Mini Crane Non-Marking White Rubber Tracks

Non-Marking White Rubber Tracks

Cold Weather Package

Paint Colours

Custom Paint Colours

MAEDA Mini Crane Machine Cover

Machine Cover
