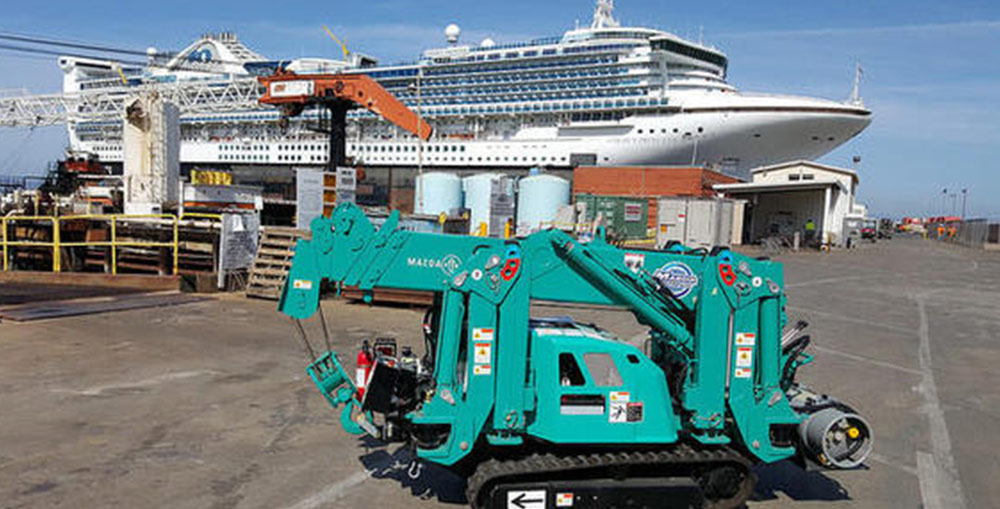

From construction work to natural resource development, the applications for MAEDA Mini Cranes are limitless.

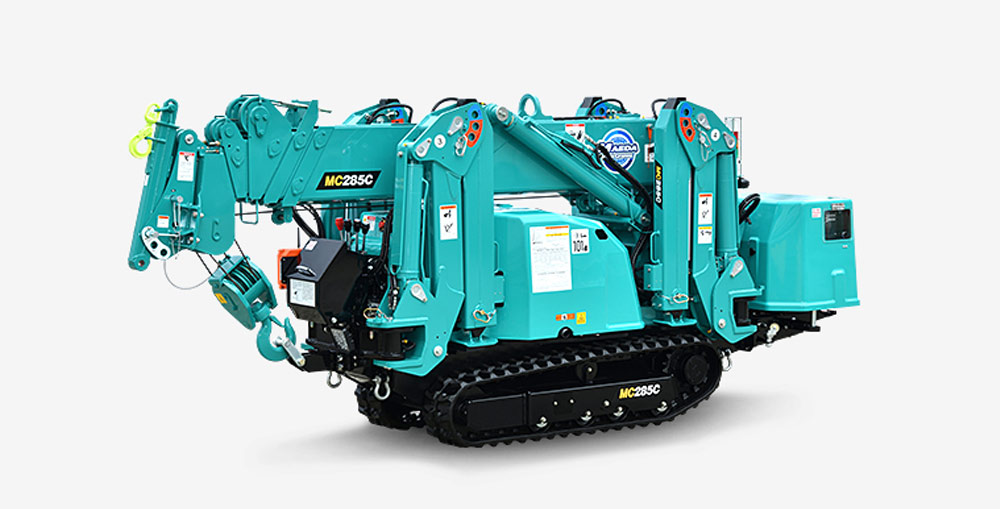

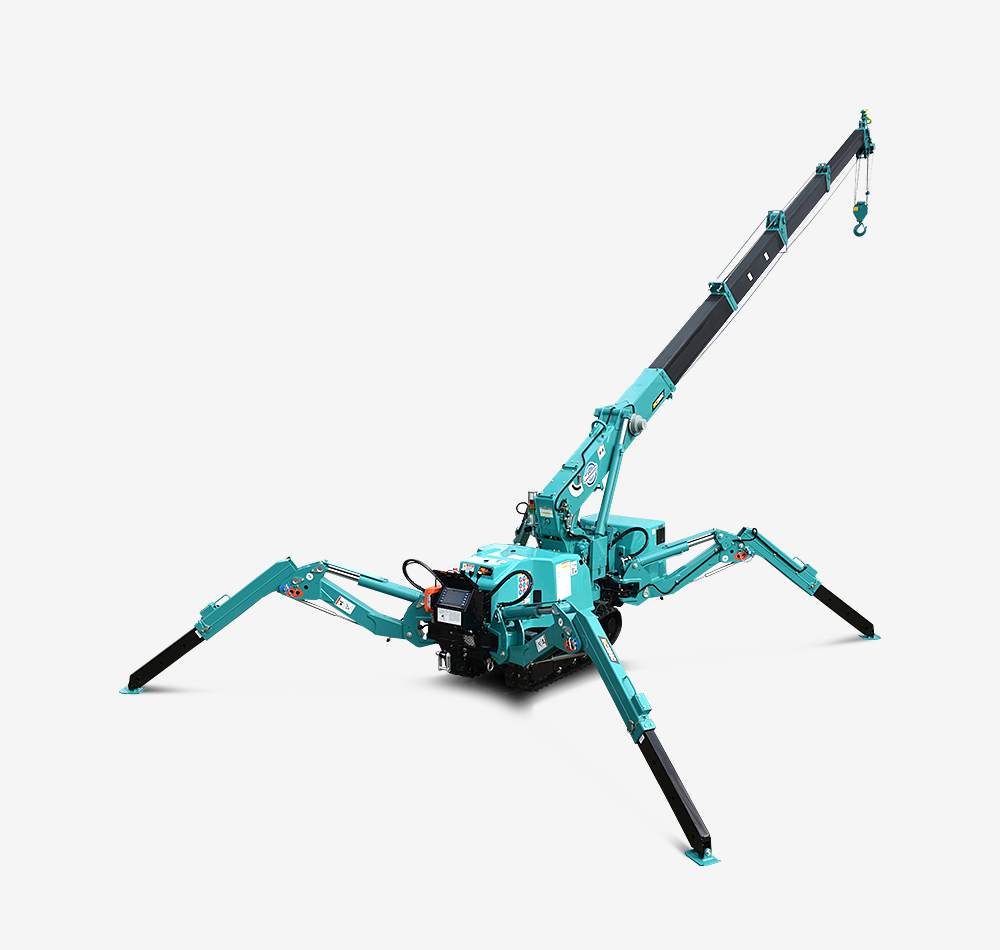

MAEDA Mini Crane MC285C
MAEDA Mini Crane MC285C
MAEDA Mini Crane MC285C

Crane capacity

6,210 lb x 4.5 ft
(2.82t x 1.4m)

Max. lifting height (on the ground)

28.54 ft
(8.7m)

Max. working radius

26.9 ft x 330 lb
(8.205m x 0.15t)

Max. lifting height (underground)

-33.0 ft (4 falls)
(-10.1m)

STANDARD EQUIPMENT

All our cranes include a range of standard equipment that ensure the
safety, functionality and usability of the cranes are unsurpassed.

Radio Remote Control with Digital Display

4 fall/2 fall Hook Block

Level

Programmable Moment Limiter

Tilt Alarm

Crane/OR Interlock

Working Limit Setting

Multi Angle Position Outriggers

Working Status Lamp

Data Logger

Machine Cover

OPTIONS

A range of optional equipment that enables our cranes to adapt
to all kinds of work and environmental factors.

Electric Motor Power (Inverter system)
(Detachable)

Single Fall Hook

Searcher Hook

Non-Marking White Rubber Tracks

Auxiliary Winch w/ Long Wire Rope

Custom Paint Colours
